I need solar panel charger for my battery

[Gh0stxSinghx]

I think would MULTISTAR lipo battery for e-bike? http://www.hobbyking.com/hobbyking/store/__1387__85__Batteries_Accessories-MultiStar.html?utm_campaign=160714.UK&utm_content=2906338329&utm_medium=email&utm_source=EDM I have used Imax B6 charger. like my bebop drone with battery 2500/2600mah.

My video bebop drone for battery:



[D8ve]

What's the limits for your batteries, time, range, money, weight?
Three car batteries would be cheap but exceptionally heavy.
An extra lithium battery as you have would double your range.
Lipos have a lot of bang for your buck, but also possible bang on the bike.
Recharging in a cafe or elsewhere while having a meal is possible.



[trex]

forget SLAs.
lipo or Lithium ion, you need 10S to use on your BBS01.



[Gh0stxSinghx]

Thanks! I would great with the lightwieght, best long range, good price low.

I think buy to 2 x 4000mah batteries if best range for hours, and use my imax B6 charger + balanced charging plate.

Buy 2 x 4000mah:
http://www.hobbyking.com/hobbyking/store/__56847__Multistar_High_Capacity_4S_4000mAh_Multi_Rotor_Lipo_Pack.html



[Gh0stxSinghx]

forget SLAs.
lipo or Lithium ion, you need 10S to use on your BBS01.

What mean 10S?



[trex]

that pack you wanted to buy is a 4S, 4 cells in series, 16V.
You need 10 cells in series, 40V to run with your BBS01. You'll have to connect two 5S packs to make a 10S pack. Can your quadcopter use 5S?



[Gh0stxSinghx]

Buy two 5S packs that 5000mAh or 5200mAh?. My imax B6 charger full is 5.0A but not up 5.2A. No my bebop drone only 2500mAh. Can use dji phantom with 5S.



[Gh0stxSinghx]

Multistar not find 5000mah, that 5200mah only.

Can you tell me which best zippy or turnigy for power motor and best long range?
you sent me the info:
Minimum Capacity: 5000mAh
Configuration: ?
Constant Discharge: ?
Peak Discharge (10sec): ?C

That is right? - for to connect two 5S packs to make a 10S pack:
http://www.ebay.co.uk/itm/Lipo-Battery-Series-Pack-4mm-HXT-Shrouded-Connector-Lead-14AWG-UK-/221694298974?pt=LH_DefaultDomain_3&hash=item339e028b5e



[trex]

yes, that's right, use a Y piece to connect the two 5S bricks. Don't worry about constant discharge rate - you'll get plenty.



[Gh0stxSinghx]

Thanks! I have ordered the Y.

I am make solder the wire and plug, I ordered the items:
http://www.ebay.co.uk/itm/400754485215
http://www.ebay.co.uk/itm/330550474144
10s pack conncet to BBS01 from there photo, I find where plug female same the bottle battery:



[Gh0stxSinghx]

2 or 3 Pin Plug (female)?
http://www.ebay.co.uk/itm/GX12-2-Pin-to-7-Pin-Plugs-Chassis-Sockets-Audio-CNC-Aviation-Ham-Radio-CB-C-/121627440226?pt=LH_DefaultDomain_3&var=&hash=item1c518f7462



[trex]

Here is a solution: open the base of your bottle battery, attach a 2-core 14 AWG silicon cable about 10cm to the two battery terminals, then crimp a pair of 30A Anderson plug to the other end of the 10cm cable.
That's the Anderson tail, you can now plug in your new parallel lipo battery there.
You need also make an extension lead to go from where you want to install your lipo packs to that 10cm Anderson tail. That extension lead needs to be 2-core 14AWG also but must be round cable and sheathed. Fit a pair of 30A Anderson to the bottle battery side and a JST to the lipo pack side.
You also need to fit lipo alarm.
It would be a lot easier to just buy a 15AH 36V battery from Eclipse and sell your 9AH battery secondhand.



[Gh0stxSinghx]

I was hard read your englsih what mean you said, i am deaf is hard full english so i am BSL is deaf and not english. if you post here easy english and show pics will help know?

I ordered all:
2 x ZIPPY Flightmax 5000mAh 4S1P 20C
1 x Y
3 x 4mm Gold Connector w/ Protector (male/female)
1 x 14AWG Silicone Wire 50cm Black & Red



[trex]

that's a good start.
Those gold connectors are not foolproof.
Anderson connectors are better, as you are going to plug/unplug to charge the lipo packs, you can't take the risk that the terminals can come into contact wrongly.

Let's wait until you get as far as you can go. Then come back and we'll help you some more.



[JohnCade]

I was hard read your englsih what mean you said, i am deaf is hard full english so i am BSL is deaf and not english. if you post here easy english and show pics will help know?

I ordered all:
2 x ZIPPY Flightmax 5000mAh 4S1P 20C
1 x Y
3 x 4mm Gold Connector w/ Protector (male/female)
1 x 14AWG Silicone Wire 50cm Black & Red

I remember asking a bloke on the street in southern India many years ago if he could direct me to the Monarch Hotel. I pronounced it in the usual English way and repeated it several times but he just could not understand me. Finally in exasperation he said in his heavily accented Indian English “why don’t you speak good English like I do?”

Turned out he would have understood if I pronounced it with a soft ch. I found that out later when I started to buy that brand of cigarettes there.



[trex]

I was hard read your englsih what mean you said, i am deaf is hard full english so i am BSL is deaf and not english. if you post here easy english and show pics will help know?

I ordered all:
2 x ZIPPY Flightmax 5000mAh 4S1P 20C
1 x Y
3 x 4mm Gold Connector w/ Protector (male/female)
1 x 14AWG Silicone Wire 50cm Black & Red

2 x ZIPPY Flightmax 5000mAh 4S1P 20C

That's the wrong pack.

You need 5S, not 4S.
You will kill your 9AH bottle battery if you connect it to the new packs.



[Gh0stxSinghx]

that's a good start.
Those gold connectors are not foolproof.
Anderson connectors are better, as you are going to plug/unplug to charge the lipo packs, you can't take the risk that the terminals can come into contact wrongly.

Let's wait until you get as far as you can go. Then come back and we'll help you some more.

Thanks, i get buy now or wait? for 45amp Anderson Powerpole connectors (sliver).

I remember asking a bloke on the street in southern India many years ago if he could direct me to the Monarch Hotel. I pronounced it in the usual English way and repeated it several times but he just could not understand me. Finally in exasperation he said in his heavily accented Indian English “why don’t you speak good English like I do?”

Turned out he would have understood if I pronounced it with a soft ch. I found that out later when I started to buy that brand of cigarettes there.

Well done, I don't speak good english, deaf is mean speak British Sign Language.

2 x ZIPPY Flightmax 5000mAh 4S1P 20C

That's the wrong pack.

You need 5S, not 4S.
You will kill your 9AH bottle battery if you connect it to the new packs.

I am lost ordered now, I think 5s = 5000mah so i am wrong now. mean "5S cell" I know now that. I think you told don't worry, any battery zippy or turnigy 5000mah so I buy pick battery. Need info sent me the battery or link i buy it now.



[trex]

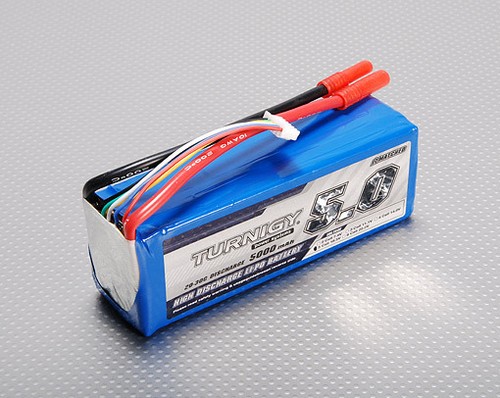

5S Lipo 5000mAH

http://www.ebay.co.uk/itm/RC-Turnigy-5000mAh-5S-20C-Lipo-Pack-/131262108935



[Gh0stxSinghx]

Thanks, I wait to me dilvery the 2 x ZIPPY Flightmax 5000mAh 4S1P 20C and rutern, Next buy there 5S Lipo 5000mAH.



[JohnCade]

Well done, I don't speak good english, deaf is mean speak British Sign Language.



I am lost ordered now, I think 5s = 5000mah so i am wrong now. mean "5S cell" I know now that. I think you told don't worry, any battery zippy or turnigy 5000mah so I buy pick battery. Need info sent me the battery or link i buy it now.

Not much use on a written forum like this though....
