Charger port

[Deleted member 25121]

Which correct socket do I get off eBay I know someone with experience to sort it I just don't want to buy the wrong one

That's difficult to say when the photos aren't so great, I suggest you show your friend the damaged socket and ask them to find a replacement. You could suggest they start by searching on eBay for "rca panel mount" as vfr400 suggests.
Almost certainly the part that's needed is run-of-the-mill and not specific to Powabyke. It should only cost a £ or 2. It should be an easy fix.



[Debbiedoo]

That's difficult to say when the photos aren't so great, I suggest you show your friend the damaged socket and ask them to find a replacement. You could suggest they start by searching on eBay for "rca panel mount" as vfr400 suggests.
Almost certainly the part that's needed is run-of-the-mill and not specific to Powabyke. It should only cost a £ or 2. It should be an easy fix.

Thank you



[Debbiedoo]

That's difficult to say when the photos aren't so great, I suggest you show your friend the damaged socket and ask them to find a replacement. You could suggest they start by searching on eBay for "rca panel mount" as vfr400 suggests.
Almost certainly the part that's needed is run-of-the-mill and not specific to Powabyke. It should only cost a £ or 2. It should be an easy fix.

I've looked on eBay and type in vfr400 sorry they nothing like what I'm after that picture I sent was something similar



[Deleted member 25121]

I've looked on eBay and type in vfr400 sorry they nothing like what I'm after that picture I sent was something similar

Take your damaged socket to your friend, they should be able to identify what's needed.



[Nealh]

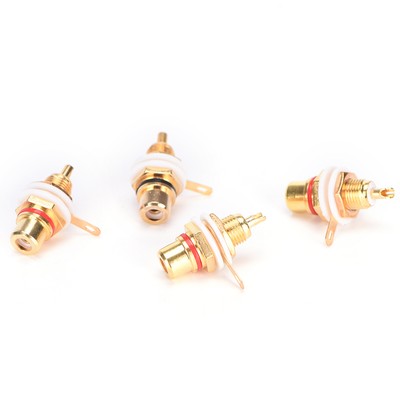

The RCA looks more like this and not the DC 5.5mm ones I mentioned.

2pcs Gold Plated RCA Female Audio Socket Chassis Panel Mount Adapter Connector | eBay

The thickness of the mounting plate must be less than or equal to 5 mm. Gold plated for transfer and maximum signal durability. Type: Audio Adapter/Converter.

www.ebay.co.uk

Pardon our interruption...

www.ebay.co.uk

Reason for the damage is an electrical short either the socket on the battery and somehow the V- tab has contacted against the V+ contact area or the charger plug is faulty.



[Nealh]

If your charger male plug looks like this on the end then
you need the female RCA type vfr and also I have linked too.

Pardon our interruption...

www.ebay.co.uk

Also test the voltage on the chargers end socket to make sure it gives the correct voltage but be very careful not to allow the probes contacts to touch each other or to short a cross both the centre pin and outer metal part.
Centre pin is V+ outer case is V-.



[vfr400]

If your charger male plug looks like this on the end then
you need the female RCA type vfr and also I have linked too.

Pardon our interruption...

www.ebay.co.uk

Also test the voltage on the chargers end socket to make sure it gives the correct voltage but be very careful not to allow the probes contacts to touch each other or to short a cross both the centre pin and outer metal part.
Centre pin is V+ outer case is V-.

Ebike RCAs are slightly different because they have power on them. If the pin stuck out, like the one in your picture, it would short the charger if it touched anything metal, so ebike ones have a shorter middle pin that doesn't stick out. OP needs the female one. I'm pretty sure that any will work as long as the inner sleeve isn't too deep inside. You can only look at the pictures to see which ones look dodgy and which ones look OK. Unfortunately, they don't show that in most pictures.



[RossG]

I tried messing with the image to get a better look, looks like the centre pin is snapped. Wondering if it got too hot ?



[Debbiedoo]

I tried messing with the image to get a better look, looks like the centre pin is snapped. Wondering if it got too hot ?View attachment 31351

Yes it has snaped off I did find the rca panel mount but I can't remember what sight I saw it on after I took a photo of it



[vfr400]

This one will work.

10 Pcs Gold Plated Female RCA Phono Jack Panel Mount Chassis Connectors SocketUW | eBay

Find many great new & used options and get the best deals for 10 Pcs Gold Plated Female RCA Phono Jack Panel Mount Chassis Connectors SocketUW at the best online prices at eBay! Free delivery for many products!

www.ebay.co.uk

Same one cheaper from HK if you can wait.

4 Pcs RCA Phono Chassis Panel Mount Female Connector Gold Tone L8s9 K8a7 for sale online | eBay

Find many great new & used options and get the best deals for 4 Pcs RCA Phono Chassis Panel Mount Female Connector Gold Tone L8s9 K8a7 at the best online prices at eBay! Free delivery for many products!

www.ebay.co.uk
