Help! Yamaha battery X60-EO replacement

[hugh burden]

8yr old battery on Gepida bike. Worked OK. Unused for 1yr. Recharged inadvertently left for 1 week in charger. Showing only 1.6V. Charger says charged but still only reached 1.6v. Internal fuse ok.
Any suggestions please?
Any source for cheaper replacement than Gepida quote of €545?
Hugh



[soundwave]

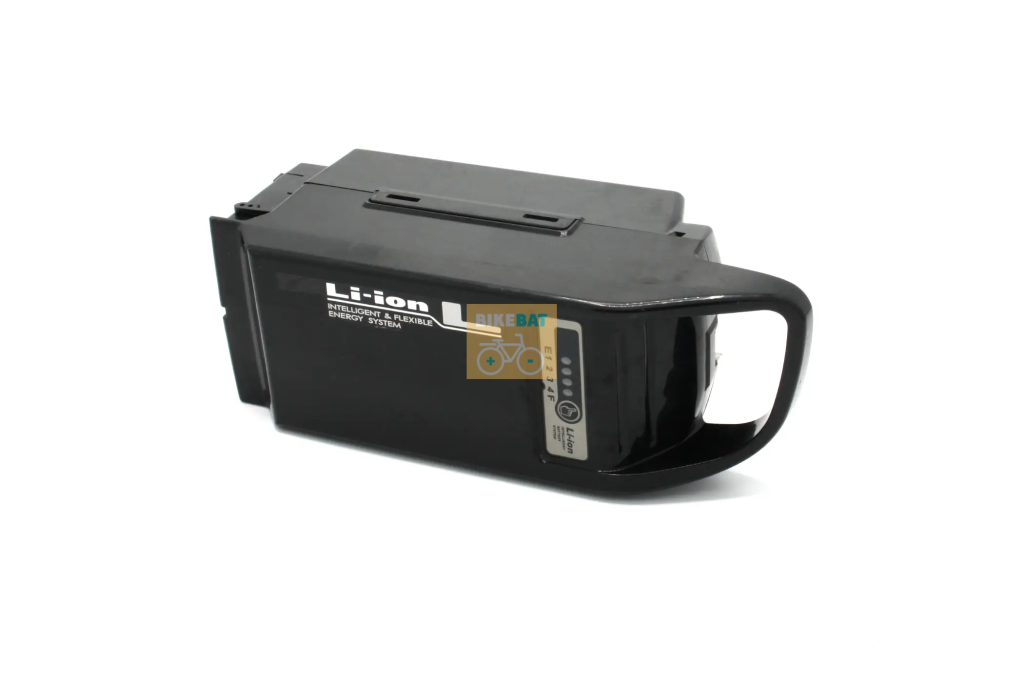

Yamaha X60-E0 24V fietsbatterij laten herstellen door Bikebat

Cette révision nécessite un nouveau chargeur en raison du renouvellement complet de l'électronique. Chargeur: 24V DC 2.1 Collecte et retour gratuits Suivez votre commande grâce à notre système de traçage track & trace 2 ans de garantie

bikebat.be

tho they might not ship to the uk but if the batt uses can bus comms then you are screwed as you cant recell the packs



[hugh burden]

Yamaha X60-E0 24V fietsbatterij laten herstellen door Bikebat

Cette révision nécessite un nouveau chargeur en raison du renouvellement complet de l'électronique. Chargeur: 24V DC 2.1 Collecte et retour gratuits Suivez votre commande grâce à notre système de traçage track & trace 2 ans de garantie

bikebat.be

tho they might not ship to the uk but if the batt uses can bus comms then you are screwed as you cant recell the packs

Thanks for your advice & the link.
They say can apparently replace cells & electronics but insist on new charger as well - total cost €405 plus post by me.
I think I need to find someone in UK with cells & spot welder.



[soundwave]

Torque-E-Cycles
139 Bibbacombe Rd
Torquay
01803 325945

it is worth a shot as they can do the bosch batts



[hugh burden]

Sent photos to electric bike world who will replace cells (& electronics?) inc pp for £440 which works out about the same for BikeBat in Netherlands (sound waves suggestion) total cost.
Assuming electronics are OK then replacing cells should be say £30 batteries, £70 new spot welder, £10 metal strips, Labour 3hrs - £100, courier £40 = £250 +£50 Overhead & Profit. Must be able to get it done for <£300??
Altho here's what one company kindly advised
"The BMS in these kinds of batteries is often booby-trapped to render itself permanently unusable under a set of pre-programmed, arbitrary conditions ie. Leaving the battery uncharged for x amount of time and/or detaching the BMS from the welded pack of cells. Best sell bike without battery & convert a new conventional bike with kit & top class battery easily replaced when necessary"

Interesting approach especially as I'm not really liking the Gepida.



[soundwave]

if the bms is can bus which i think it is then you will need to use the same bms and the charger you have because if you recell the pack with a normal non smart bms when you put it on the bike it wont turn on because the bms wont talk to the motors controller.

you can get a volt meter on my bosch pack and it will show nothing voltage wise as it wont turn on unless it gets an can bus hand shake from the controller.

this is all done on purpose to force you to buy there batts but give scott a call as he is your best bet with these batts but it wont be cheap but might be able to make the pack with more capacity/ better cells.



[saneagle]

According to this, you can use any 24v battery you want, which would cost less than £200. Just connect the battery to the two power wires to the motor. The third wire is used to show battery info on the display, so you won't get that. Instead, these guys use a separate battery display meter. You don't need to do what they do, just fit any voltmeter or the one below. I'd test it with any 24v source first to see if works before buying a battery. You'll need a new charger to charge the new battery, but batteries normally come with one anyway. A 24v charger would be a good source to test your bike with on a stand, but not by riding it:

Akku von Gepida Reptila X60-E0 Yamaha - Antrieb: Reparieren oder Akkuzellen austauschen - sonstige(s)

Akku von Gepida Reptila Akkuzellen selbst erneuern X60-E0 Yamaha - Antrieb Hallo ! ich dachte mir, wunderbar ein fast neues ebike, nur der Akku ist kaputt. Kurz gedacht schon gekauft. Da ich weiß was ich tu, hab ich dann mal neue Einzelzellen von Pan gekauft und die INnereien des Akku...

www.pedelecforum.de

Indicator Battery Capacity Indicator Voltmeter Power Display Meter Tester | eBay

Find many great new & used options and get the best deals for Indicator Battery Capacity Indicator Voltmeter Power Display Meter Tester at the best online prices at eBay! Free delivery for many products.

www.ebay.co.uk



[hugh burden]

if the bms is can bus which i think it is then you will need to use the same bms and the charger you have because if you recell the pack with a normal non smart bms when you put it on the bike it wont turn on because the bms wont talk to the motors controller.

you can get a volt meter on my bosch pack and it will show nothing voltage wise as it wont turn on unless it gets an can bus hand shake from the controller.

this is all done on purpose to force you to buy there batts but give scott a call as he is your best bet with these batts but it wont be cheap but might be able to make the pack with more capacity/ better cells.

You mentioned Scott. Which company/tel no was he from?



[hugh burden]

if the bms is can bus which i think it is then you will need to use the same bms and the charger you have because if you recell the pack with a normal non smart bms when you put it on the bike it wont turn on because the bms wont talk to the motors controller.

you can get a volt meter on my bosch pack and it will show nothing voltage wise as it wont turn on unless it gets an can bus hand shake from the controller.

this is all done on purpose to force you to buy there batts but give scott a call as he is your best bet with these batts but it wont be cheap but might be able to make the pack with more capacity/ better cells.

I wonder how I could establish whether the electric motor rating would accommodate an increased voltage/amperage. I'd be a bit concerned if I upped to 36v from 24v then smelt the motor burning out. Have you witnessed this type of upgrade?



[soundwave]

Torque-E-Cycles
139 Bibbacombe Rd
Torquay
01803 325945

i dont mean more voltage but better cells with more capacity so same size pack with more range



[hugh burden]

Torque-E-Cycles
139 Bibbacombe Rd
Torquay
01803 325945

i dont mean more voltage but better cells with more capacity so same size pack with more range

Aaaah. I see. Thanks
